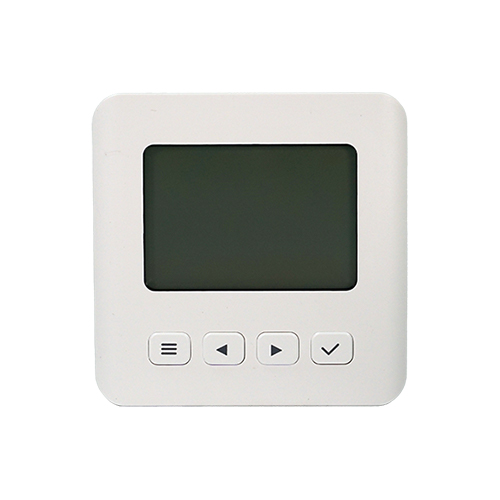

1.Product Introduction of Wireless Temperature Measuring Host
Traditional temperature measurement methods often prove ineffective when faced with challenges such as high voltage, large current, strong magnetic fields, and spatial limitations. The OMARA wireless temperature measuring host works in conjunction with wireless temperature sensors. It uses radio waves to transmit signals, and there is no electrical connection between the sensors and the host, successfully solving the problem of the difficulty in real-time online monitoring of the operating temperature of the connection points of high-voltage equipment.
This wireless temperature measuring host is powerful and comprehensive, integrating functions such as monitoring the working status of temperature sensors, displaying on-site temperature, providing alarm prompts and outputs, recording events, and recording data. It can be widely applied in various scenarios of high-voltage electrical equipment, such as transformers and switchgear in substations, motors and busbar joints in power plants, as well as high-voltage distribution rooms in industrial plants. By operating in a networked manner through standard communication interfaces and working in conjunction with the upper computer software, it can provide accurate data support for the maintenance of high-voltage equipment, achieve predictive maintenance for thermal failures, effectively reduce the risk of equipment failures, and ensure the stable operation of the power system.
2. Product Parameter (Specification) of Wireless Temperature Measuring Host
| Technical Parameters | Technical Indicators | |
| Wireless Parameters | Wireless Frequency | 433 MHz |
| Management of Wireless Sensor Quantity | ≤252 units | |
| Communication Parameters | Communication Interface | RS485 communication interface, communication distance ≤ 1200m (without repeater) |
| Number of Main Station Networking | ≤128 units | |
| Communication Protocol | Modbus Protocol "Wireless Temperature Measurement System Communication Protocol" | |
| Baud Rate | 1200, 2400, 4800, 9600, 19200 bps (optional) | |
| Default Alarm Parameters | Temperature Alarm Value | Upper limit: +90℃, Lower limit: -20℃ |
| Temperature Alarm Value | Upper limit: +60℃, Lower limit: -10℃ | |
| Alarm Voltage Value | 2700mV | |
| Relay Dry Contact Parameters | AC220V/5A (1 group of no-pull-up/no-pull-down contacts) | |
| Operating Voltage | AC85~265V/DC110~370V | |
| Overall Power Consumption | ≤5VA | |
| Operating Temperature | -20℃ ~ +70℃ | |
| Operating Humidity | ≤90%RH, no condensation, no corrosion | |
| Altitude | ≤2500 meters | |
| Protection Grade | IP20 | |
| Insulation Resistance | ≥100MΩ (temperature in 10~30℃, relative humidity less than 80%) | |
| Installation Method | Wall-mounted installation | |
3. Product Feature And Application of Wireless Temperature Measuring Host
Powerful Data Reception Capability: Stable reception of data from up to 252 wireless temperature sensors, ensuring data integrity and accuracy.
Color Display Screen: Clearly presents data with controllable backlight, adapting to different lighting environments for convenient on-site monitoring.
24HContinuous Monitoring: Provides round-the-clock temperature monitoring of critical equipment in substations, promptly identifying temperature anomalies.
Rapid Alarm Mechanism: Quickly triggers alarms in case of temperature abnormalities, using relay signals, external alarm devices, and buzzer sounds to alert staff.
Detailed Alarm Records: Logs key information of alarm events, providing crucial evidence for subsequent fault diagnosis.
Ensures Power Supply Reliability: Effectively prevents power outages caused by equipment overheating, ensuring continuous and stable power supply.
Reduces Economic Losses: Monitors equipment temperature rigorously in industrial facilities, minimizing production interruptions and economic losses due to failures.
4. Product Detail of Wireless Temperature Measuring Host
Data Reception: Receives temperature and sensor operating voltage data uploaded by wireless temperature sensors.
Data Display: Colorfully displays received data for more intuitive visualization. The backlight is controllable, making it suitable for various application scenarios.
Clock Display: Real-time clock display, serving as the time reference for event logging.
Parameter Configuration: All parameters are flexibly configurable with user-friendly operation. Data is retained even during power loss.
Alarm Output: When an alarm event occurs, the relay dry contact signal is triggered, and a buzzer sound alerts users.
Temperature Alarm Records: Logs the temperature, start time, and end time of locations where alarms have occurred. It can store up to 200 records, automatically overwriting the oldest records when the limit is exceeded.
Password Management: Utilizes password management. A password is required to configure parameters, with separate user and system passwords. Entering the system password grants access to advanced settings.
5. Product Qualification of Wireless Temperature Measuring Host
OMARA has always placed great emphasis on product quality and safety. The wireless temperature monitoring host has successfully obtained multiple international authoritative certifications, including CE, CMC, and ISO. These certifications are a testament to the product's technical level, quality reliability, and safety, fully demonstrating OMARA's leading position in the industry. Customers can be completely confident in the quality and performance of OMARA products. We are committed to providing professional expertise and stringent quality control to ensure the safe operation of your equipment.
6. Deliver, Shipping And Serving of Wireless Temperature Measuring Host
After-Sales Service:
A 12-month warranty is provided. During the warranty period, any malfunctions caused by product quality issues will be repaired or replaced free of charge.
Beyond the warranty period, lifelong paid repair services are available, with only material costs and labor fees charged.
Technical Support:
7×24-hour technical consultation services are offered to assist customers with issues related to product installation, debugging, and usage.
Remote debugging and configuration guidance are supported to ensure customers can quickly get started with the product.
Return and Exchange Policy:
If quality issues are found within 7 days of receiving the product, customers may apply for a return or exchange.
The product must be returned in its original packaging with all accessories included, and relevant inspection reports or photos must be provided.
7. FAQ
Q: How many sensors can the wireless temperature monitoring host connect to at most?
A: It can manage up to 252 wireless temperature sensors, meeting the monitoring needs of most high-voltage electrical equipment. In practical applications, the system can be configured according to the scale and complexity of the project to ensure comprehensive and accurate temperature monitoring.
Q: How does the wireless temperature monitoring host ensure stable data transmission?
A: It utilizes a stable 433MHz wireless frequency, combined with advanced signal processing technology and anti-interference algorithms, effectively resisting electromagnetic interference from the surrounding environment.
Q: How does the wireless temperature monitoring host notify staff in case of an alarm?
A: It connects to external alarm devices through relay outputs and emits a buzzer sound. Additionally, the host records detailed information about the alarm event, including the temperature of the monitoring location, start time, and end time, enabling staff to promptly address equipment abnormalities.
