1.Product Introduction of 5T Intelligent Edge Gateway
The 5T Smart Edge Gateway integrates networking, AI intelligence, and storage capabilities, supporting the local processing of real-time video and IoT sensor data, reducing reliance on the cloud, and lowering bandwidth and storage costs. Suitable for scenarios such as smart communities, factories, and parks, it supports the connection of 8 devices and features lightness, low power consumption, and abundant interfaces.
2. Product Parameter (Specification) of 5T Intelligent Edge Gateway
| Specification | Product Dimensions | Length*Width*Height:250*170*20(mm) | Weight | 1.15kg |
| Power Supply | ±40~±60V, typical working voltage is ±48v | Power Consumption | ≤8w when not connected to POE powered devices | |
| Performance | Communication Module | Supports 4G and 5G communication modes (switching between different modules) | Processor | Quad-core Arm& Cortex&A53.1.2GHz |
| Memory | 4G | Computing Power | 5TOPS(INT8) | |
| Chip | X3M(Horizon) | Operating System | Ubuntu | |
| Storage | System storage 64G EMMCe | |||
| Interface Information | Display Interface | HDMIx1 | Antenna Interface |
SMA Female *1(LTE) SMA Female *2(5G) |
| Ethernet Port | 10/100/1000MbpsWAN Port1, supports Auto MDI/MDIX, 10/100/1000Mbps LAN Ports 4, supports POE | Other Interfaces | DI/Do Interface x2 | |
| USB Interface | USB3.0*2 | RS232 Interface x1 | ||
| SIM Card Slot | Standard SIM Card Slot | RS485 Interface x1 | ||
| Video Input | Video Decoding Capability | H.264/H.265:1080P @240fps | Video Decoding Resolution | 4K/1080P/720P/D1/CIF |
| Video Encoding Capability | H.264/H.265:1080P @240fps | Video Decoding Resolution | 4K/1080P/720P/D1/CIF | |
| Mage Encoding/Decoding Capability | 160 Images/second (JPEG) |
3. Product Feature And Application of 5T Intelligent Edge Gateway
The 5T Smart Edge Gateway comes pre-installed with multiple AI algorithms (such as uniform detection, fire and smoke detection, face detection, etc.), supports third-party algorithm access, supports 8-way 1080P video input, runs two algorithms in parallel, supports interfaces such as RJ45, RS485, RS232, MODBUS, DI/DO, and flexibly connects IoT devices. It supports protocols such as ONVIF, RTSP, GB28181 for connecting cameras, supports Ethernet, 4G/5G communication, and flexibly connects to cloud platforms. It is widely used in scenarios such as smart communities, smart factories, smart parks for real-time monitoring and data analysis, as well as for lightweight tasks and large-scale deployments.
4. Product Details of 5T Intelligent Edge Gateway
The 5T Smart Edge Gateway comes with built-in AI algorithms such as uniform detection, crowd detection, fire and smoke detection, etc., enhancing monitoring efficiency. Algorithm Management: Supports remote algorithm updates, version control, and runtime monitoring. It features abundant interfaces, providing HDMI, USB3.0, RS232/485, DI/DO, and other interfaces to accommodate diverse device connections. With flexible communication options, including Ethernet, 4G/5G communication, it meets the needs of different network environments. Video processing supports H.264/H.265 encoding, 1080P@240fps, and 4K decoding, satisfying high-definition video processing requirements.

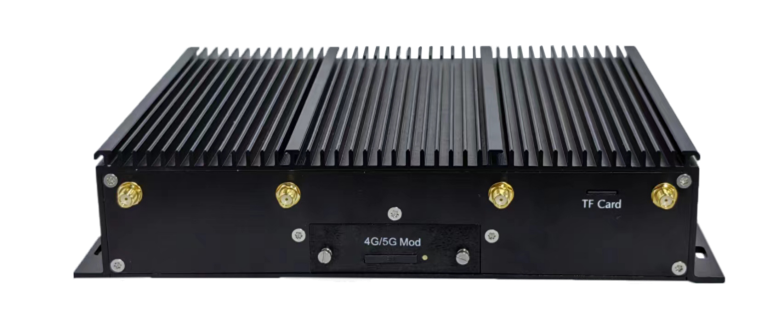

Front
Back Side
5. Deliver, Shipping And Serving of 5T Intelligent Edge Gateway
We provide comprehensive after-sales service, including a 1-year warranty and 24/7 technical support, ensuring users have no worries during use.
6. FAQ
Q1: How many types of interfaces are supported?
A: It supports HDMI, USB3.0, RS232/485, DI/DO, and other interfaces, accommodating diverse device connections.
Q2: How is the video processing capability?
A: Video processing supports H.264/H.265 encoding, 1080P@240fps, and 4K decoding, meeting high-definition video processing requirements.
